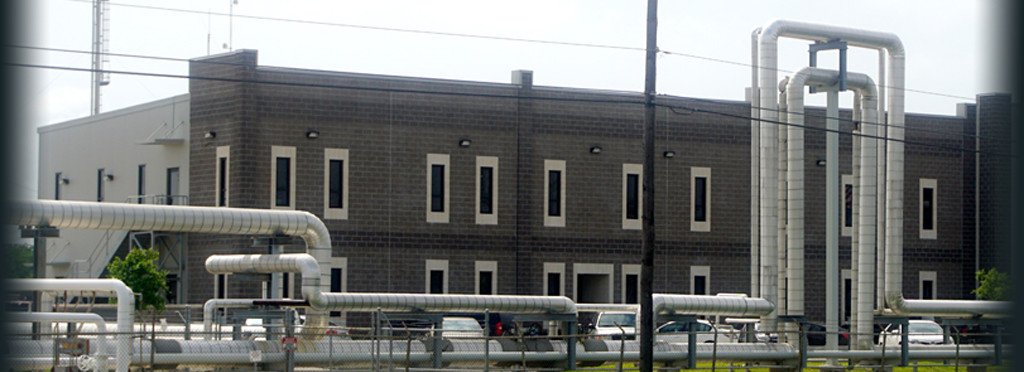

Blast Resistant Metal Buildings
Rigid has partnered with Baker Risk Engineering to provide a cost effective alternative to typical blast buildings. Rigid’s blast buildings come with not only a comprehensive blast analysis using dynamic modeling, but also the guaranteed quality of a Pre-Engineered Metal Building. Blast loads up to 5 psi, custom designed metal building layouts, and our dynamic approach to design ensures the best quality and price.
Blast Partnership
In 2015 Rigid formally teamed with Baker Engineering and Risk Consultants (BakerRisk), an industry leader in the design and evaluation of blast resistant construction, to deliver Blast Resistant Pre-Engineered Buildings for industrial applications. Together Rigid and BakerRisk offer a turn-key solution that couples the comprehensive understanding of blast design with the efficiencies of a Pre-Engineered Metal Building. This turnkey solution will ensure the piece-of-mind needed, to confidently deliver a product that meets the specification and owner’s requirements.
With the emergence of domestic fracking and the associated growth in natural gas and refining facilities, several owners have encountered the challenge of safely locating personnel around expanding production and within limited real estate. This challenge, and the emergence of updated industry guidance like API RP 752 and API RP 753, has pushed owners to retrofit existing structures for higher blast loads or construct new buildings to accommodate the growth and meet the latest industry guidance.
Rigid / BakerRisk recognized this need within the petrochemical processing industry for a more versatile, customizable structure, capable of withstanding blast loads. Historically there have been two primary options to consider when constructing a new industrial blast resistant building. They are reinforced concrete structures and blast resistant modular buildings (BRM).
While both options have merit in resisting blast loads, Rigid understands that both options can be restrictive when considering versatility, customization, schedule and cost.
With the advances in engineering and testing, Pre-Engineered Metal Buildings have become the building of choice when the blast load is between 0 and 5 psi. Pre-Engineered Metal Buildings can be engineered and designed to be more cost efficient and durable in this blast range.
Conventional Design | Blast Resistant Design |
---|---|
Compulsory | Often voluntary |
Governed by building code | Design specification selected by owner |
Loads prescribed by code | Design load related to owner decision |
Enforced by building officials | Exempt from building official review |
Loads are static | Loads are dynamic (time dependent) |
Response is elastic | Response exceeds elastic limit, can accept significant permanent deformations |
Analysis is static | Dynamic analysis methods are needed |
Material properties are conservative (reduced from nominal by safety factors) | Material properties are realistic (increased from nominal for dynamic effects and typical over-strength) |
Blast Resistant PEMB Advantages |
---|
PEMB:
|
MODULAR:
|
CONCRETE:
|
FUTURE MODIFICATIONS: |
---|
PEMB:
|
MODULAR:
|
CONCRETE:
|
CUSTOMIZATION: |
---|
PEMB:
|
MODULAR:
|
CONCRETE:
|
